Portable Fume Extractors:. Scavenger, Portable Fume Vacuums, AF-HS-3000A1

Starting at $1,198.90
(No reviews yet) Write a Review
Product Code:
AF-HS-3000A1
Fume Extractors, Scavenger, Portable Fume Vacuums by Cleanroom World

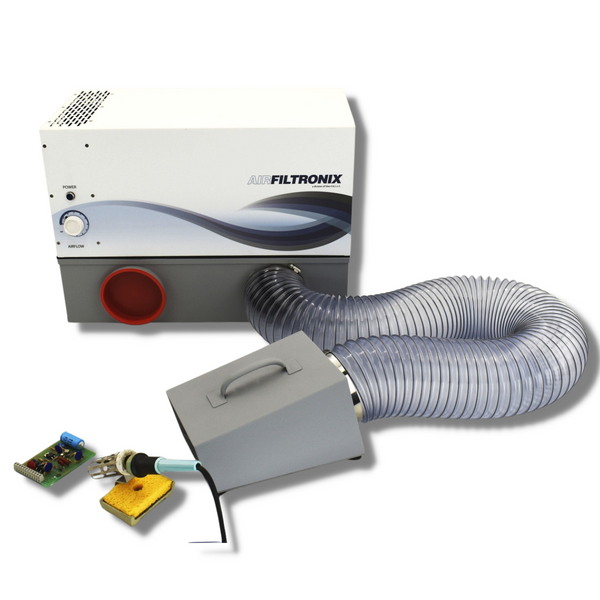

Portable Fume Extractor -  Scavenger - Portable Fume Vacuum - Single Hose - AF-HS-3000A1

The Scavenger Series portable fume/particle extractors are an inexpensive solution to all small scale, yet potentially hazardous, fume and particle problems. These powerful yet quiet, fully portable systems are ideal for use in work spaces that are too small for conventional fume hoods. They can be used on the table top or wall mounted. The unit combines a 530 cfm blower with either one or two intake scoops, each with a 5 foot heavy duty flex hose, which can be easily moved to capture the contaminant at the source. Each blower is operated with a variable speed control knob and is virtually vibration free.

Primarily designed to improve safety and hygiene in light industrial settings, the Scavenger can also be used in laboratories where a fume source can be isolated. Examples include wall mounted units to capture harmful exhaust from microwave ovens in histology labs, and spectrophotometers in analytical chemistry applications.

Like all Airfiltronix systems, the Scavengers can accommodate a variety of filters: charcoal, four stage Dacron, aluminum, and HEPA filters, to capture a broad range of chemical fumes, odors and particles - at their source.

OPTIONAL FILTERS (NOT INCLUDED)
AF-FR-4 - Activated Charcoal Filters 2.0" Deep 10"x17"
AF-FR-5 - Activated Charcoal Filters 0.5" Deep  10"x 17"
AF-HP-2 - HEPA Filters 99.99% Efficient @ 0.3 microns  10"x 17"
AF-PF-2 - Pre-filters 4 Layer Dacron 60% Efficient @ 5 microns  10"x 17"
AF-APF-2 - Pre-filters Aluminum Mesh for condensation of flux or grease  10"x 17"
AF-FRAG-4 - Acid Gas Filters  10"x 17"
AF-FRAM-4 - Ammonia Gas Filters  10"x 17"
AF-FRC-4 - Formaldehyde Filters  10"x 17"
AF-FRI-4 - Radioactive Iodine Filters  10"x 17"

Blower Dimension  16"H x 12.5"D x 23.5"W
Hose  5" diameter heavy duty chemical resistant PVC flexible hose.  Single 5 foot length for AF-HS-3000A1 and double 5 foot lengths for AF-HS-3000A2
Standard nozzles  Wedge shaped nozzles measure 9.5"D x 6.5"H, sloping to 3.5"H x 6.5"W
 Power requirements  115V AC, 100 watts, 50/60 Hz, 230V AC optional for export
Weight  AF-HS-3000A1 - 37 lbs   AF-HS-3000A2 - 43 lbs
Custom variations  Wall mounted blower, mini hood with hose attachment, unique adapter fabricated to attach to existing equipment
Scavenger options  Wall mount kit, blocked filter alarm unit, outside vent adapter kit, stainless steel cart, carrying case



Product Code: AF-HS-3000A1   Portable Fume Extractor, includes (1) 5" diameter hose and one tapered collector scoop

For more options, visit our main section for cleanroom fume hoods.

Note: We have a large selection of cleanroom hoods, including portable cleanroom hoods, cleanroom fume hoods, and cleanroom laminar flow hoods.

ORDER PORTABLE FUME VACUUMS
To order the portable fume extraction vacuums, click tab above, call customer service at (303)752-0076 or email sales@cleanroomworld.com

Shipping Instructions: The portable fume vacuum can ship via UPS or FedEx. The order ships in two boxes collect or prepay and add to the invoice. If shipping collect, add your freight account number in the “Comments Box” when checking out. Customer is responsible for the freight charge.

We also offer a variety of other Cleanroom Equipment including: softwall cleanrooms, cleanroom tables and stainless steel storage cabinets.
