Digital Megohm Meter, Measures Resistivity, Temperature & Humidity, Fahrenheit or Celsius, ACL-800

Starting at $1,687.50
(No reviews yet) Write a Review
Product Code:
ACL-800

Digital Megohm Meter - Measures Resistivity, Temperature & Humidity - High Precision Audit Kit - ACL-800

The Digital Megohm Meter is a dependable and easy to use audit kit that is designed to test static dissipative surfaces for resistance according to industry standards. Point-to-point (RTT) and Resistance-to-ground (RTG) tests are easy to perform with the powder coated and calibrated five pound electrodes. The installed conductive rails make spot checking convenient.

Unlike analog meters with LEDs, test results are shown in actual precise numeric value rather than decade value in logarithmic scale. Since ambient conditions can affect resistivity, the ACL-800 measures resistivity, temperature and humidity with the push of one button, making recording easy.

This meter is suitable to use in all facets of material production, including engineering, maintenance, quality control, incoming inspection, manufacturing, research, and sales. It is ideal for testing of anti-static mats, floor finishes, paints, wrist straps, smocks, foot wear, bags and containers.

Meter is warranted for one year from the date of purchase on parts and labor. Calibration is recommended every twelve months.

DIGITAL MEGOHM METER APPLICATIONS
• Electrical device manufacturing
• Quality control and incoming inspection
• Compliance verification

DIGITAL MEGOHM METER FEATURES
• Alphanumeric LCD scale shows precise value
• Measures resistivity, temperature and humidity
• Resistance range: 10^3 - 10^12 ohms
• Resistivity range: 10^3 - 10^12 ohms/square
• Temperature range: 32 F to 100 F (0 C - 37.7C)
• Relative humidity range: 10% to 90% RH
• Test voltage range: 10 volt: 1.0 x 10^4 - 1 x 10^6 ohms
                              100 volt: 1.0 x 10^6 - 1 x 10^12 ohms
• Accuracy: 10 volt 10^3 - 10^6 ohms: +/- 10%
                100 volt: 10^6 - 10^8 ohms: +/- 10%
• Powered by 9 volt alkaline battery
• Calibration is traceable to NIST
• Made in USA

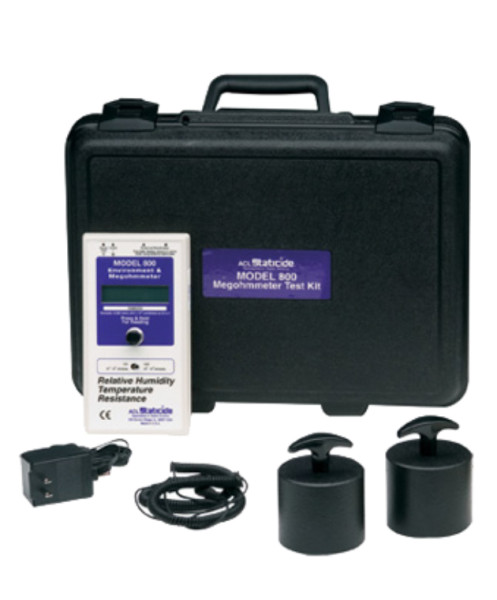

Product Code: ACL-800  Digital Megohm Meter Includes: Tester with Conductive Rails Installed, Two 5 Pound Probes, Two Stereo-to-Banana Cables, One Banana-to-Banana Grounding Cable, 9 Volt Battery, Foamed-Lined Carrying Case, and Traceable Calibration Certificate. Fahrenheit models include 110v power adapter.
Product Code: ACL800C - Celsius

ORDER DIGITAL MEGOHM METER
To order the digital megohm meter, click tab above, call customer service at (303) 752-0076, or email sales@cleanroomworld.com

Shipping Instructions: The digital megohm meter and checker can ship via UPS or FedEx. The order ships collect or prepay and add to the invoice. If shipping collect, add your freight account number in the "comments box" when checking out. Customer is responsible for the freight charge.
