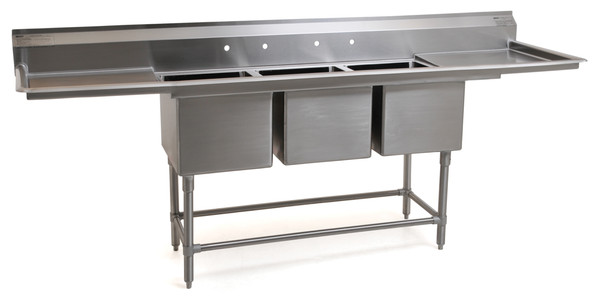

Cleanroom Sinks, Three Compartments, (2) Drain Boards, Type 304 Stainless Steel, Bowl Size 20"W x 20"L x 14"D, EA-FN2060-3-24-14/3

Cleanroom Sinks -  Eagle - Three Compartments - (2) Drain Boards - Type 304 Stainless Steel - Bowl Size 20"W x 20"L x 14"D - EA-FN2060-3-24-14/3

These cleanroom sinks are for areas that require a higher grade stainless steel to lower corrosion.  The sink is manufactured using 14 gauge, 304 stainless steel. It is also available in 316 stainless steel for pharmaceutical and medical applications. The three sink bowls are each 20" (508mm) x 20" (508mm) x 14" deep which allows larger objects to fit inside. Stainless steel sink bowl is coved with a 5/8" radius to provide clean edges. Backsplash is 9 1/2" high with 1" upturn and tile edge. Legs are 1 5/8" OD stainless steel with stainless steel gussets, cross bracing and adjustable bullet feet.

304 STAINLESS STEEL UTILITY SINK FEATURES
•  Three bowls
•  Coved bowl with 5/8" radius
•  9 1/2"H backsplash with 1" upturn and tile edge
•  1 1/8" (29mm) faucet holes punched on 8" (203mm) centers
•  Stainless steel adjustable bullet feet
•  14 gauge, 304 stainless steel construction
•  Sink bowl is 14" deep
•  Legs are 1-5/8" diameter
•  NSF
•  (2) 24" Wide drain boards on left and right
•  Overall Dimension: 27" Deep (686mm) x 114" Wide x 44.5" High x (1130mm)

304 STAINLESS STEEL UTILITY SINK TOP
•  Backsplash and rolled rims are 14 gauge
•  Rolled edges are highlighted for enhanced appearance
•  9 1/2" High backsplash with 1" upturn and tile edge
•  1 1/8" (29mm) faucet holes punched on 8" (203 mm) centers
•  Faucets sold separately

304 STAINLESS STEEL UTILITY SINK BASE
•  Legs: 1 5/8" (41mm) diameter stainless steel tubing with stainless steel gussets
•  Adjustable stainless steel bullet feet
•  Cross bracing: Adjustable, 1 1/4" (32mm) diameter stainless steel running left-to-right and front-to-back
•  Leg locations fall directly under sink bowl, providing increased stability and maximum weight support
•  Leg gussets welded to a die-cut heavy gauge stainless steel reinforcing corner plate
•  Legs are crossed braced on all sides for increased stability

304 STAINLESS STEEL UTILITY SINK BOWL
•  14 gauge, 304 stainless steel construction
•  14" (356mm) water level, 17" (432mm) flood level
•  Sink compartment coved on a full 5/8" (41mm) radius and constructed using state-of-the-art seamless welding techniques
•  Basket-type waste drain fits sink bowl's 3 1/2" (89mm) opening and features 1 1/2" (38mm) outlet

304 STAINLESS STEEL UTILITY SINK ASSEMBLY
•  Entire assembly is fuse-welded and planished, providing a one-piece seamless sink unit
•  Welded areas are high speed belt blended to match adjacent surfaces with continuity of satin finish
•  All outside corners of assembly are bullnosed to provide safe, clean edges
•  Water supply is 1/2" (13mm) NPS or hot and cold lines

UTILITY SINK OPTIONS
•  Lever drain
•  Lever drain with overflow
•  Twist handle drains
•  Overflow hole
•  Sink kits
•  Faucets
•  Poly board sink covers
•  Stainless steel sink covers

Product Code: EA-FN2060-3-24-14/3  Stainless Steel Cleanroom Sink, Three Compartments, (2) 24" Wide Drain Boards on Left and Right, Type 304 Stainless Steel, Each Bowl Size: 20"W x 20"L x 14"D
