Frameless Stainless Steel Mirrors, 304 Stainless Steel, 20 Gauge, 48x24, AS-8026-4824

Frameless Stainless Steel Mirrors - 20 Gauge - Type 304 - 48"W x 24"H - AS-8026-4824

These mirrors have no frame and are fabricated of 20 gauge, type 304, stainless steel, polished to a #8 mirror finish with a 1/4" return. Frameless stainless steel mirrors are provided with 1/4" thick concealed tempered Masonite backing and 4 mounting holes.  Installer shall provide mounting screws to suit individual field conditions.

FRAMELESS STAINLESS STEEL MIRRORS - STANDARD SIZES
AS-8026-1620          16" Wide by 20" High
AS-8026-1624          16"              24"
AS-8026-1824          18"              24"
AS-8026-1830          18"              30"
AS-8026-2430          24"              30"
AS-8026-2436          24"              36"
AS-8026-4824          48"              24"

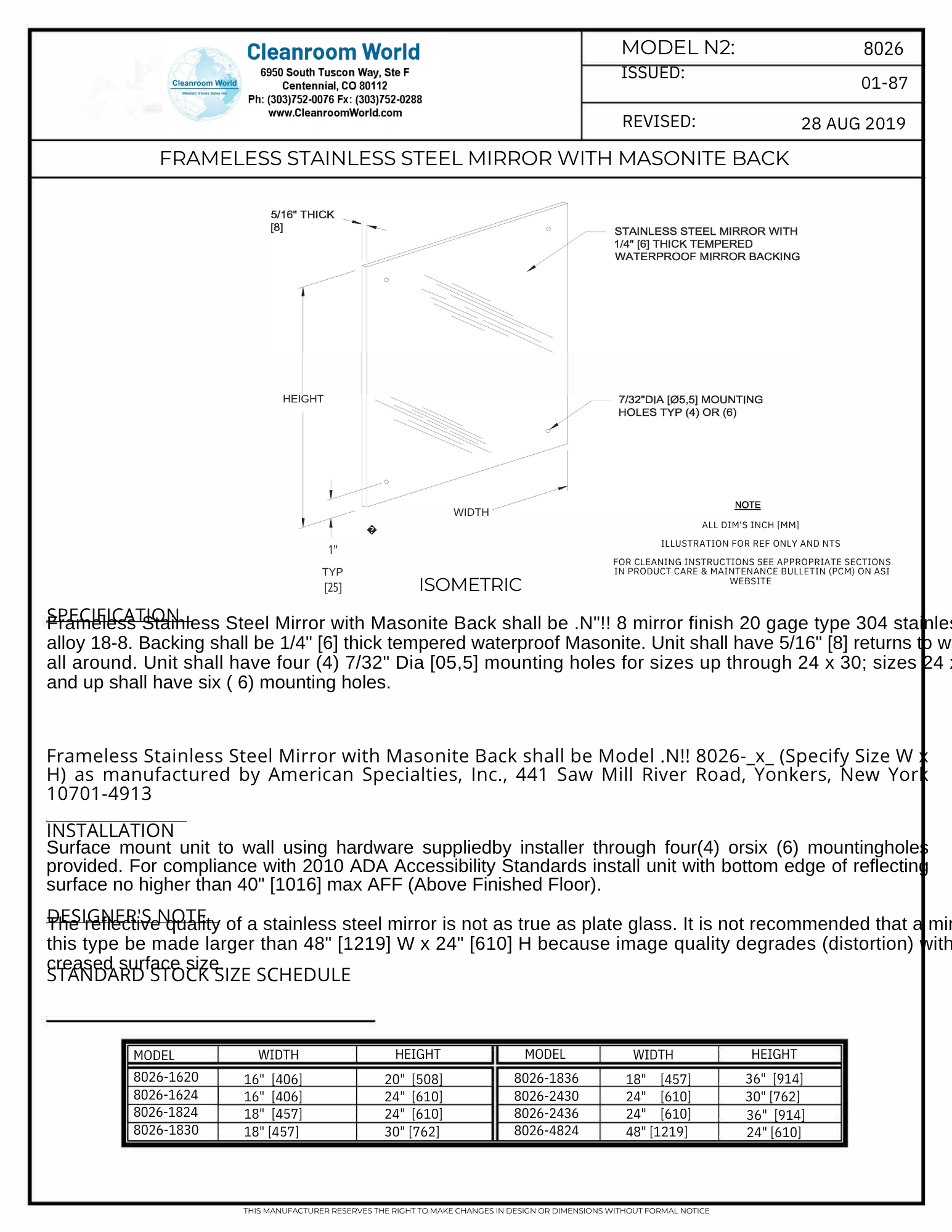

FRAMELESS STAINLESS STEEL MIRRORS - SPECIFICATIONS
•  Masonite back
•  Fabricated of 18-8 stainless steel
•  Type 304
•  N°20 gauge
•  N°8 mirror finish
•  Backing is 1/4" thick tempered water resistant Masonite
•  5/6" returns to wall all around
•  Four 7/32" diameter mounting holes

FRAMELESS STAINLESS STEEL MIRROR - INSTALLATION
Surface mount unit to wall using hardware supplied by installer through four mounting holes provided  For compliance with ADA Accessibility Guidelines install unit with bottom edge of reflecting surface no higher than 40" maximum above finished floor.

FRAMELESS STAINLESS STEEL MIRROR DESIGNERS NOTE
The reflective quality of a stainless steel mirror is not as true as plate glass.  It is not recommended that a mirror of this type be made larger than 48"W x 24"H because image quality (distortion) degrades with increased surface size.

Frameless stainless steel mirrors are special order and have an approximate lead time of three weeks to ship.

Mirrors cannot be returned because of breakage in shipping. Mirrors need to ship prepay & add to the invoice because of breakage.

Product Code  AS-8026-4824  Frameless Stainless Steel Mirrors, Type 304, 20 Gauge, 48"W x 24"H

For more options, visit our main Mirrors section..

TO ORDER CLEANROOM MIRRORS
To order the cleanroom mirrors, click tab above, call customer service at (303) 752-0076, or email sales@cleanroomworld.com

Shipping Instructions: The stainless steel cleanroom mirrors can ship UPS or Fedex. The order ships collect or prepay and add to the invoice.  If shipping collect, add your freight account number in the “Comments Box” when checking out. Customer is responsible for the freight charge.

In addition to cleanroom mirrors, we also offer a variety of other gowning room furniture including: gowning room racks and hooks, gowning benches, acrylic dispensers, and motorized shoe cleaner.
