Vacuum Heat Sealers: Nozzle Vacuum System, Ported Exhaust, Painted Steel, Table Top, Low Volume, Seal Length: 30" AV-PVT-30-PE

Vacuum Heat Sealers - Ported Exhaust for Use in Cleanrooms - Painted Steel Cabinet - Nozzle Vacuum Sealer - Table Top - Low Volume - Seal Length: 30"  AV-PVTA-30-PE

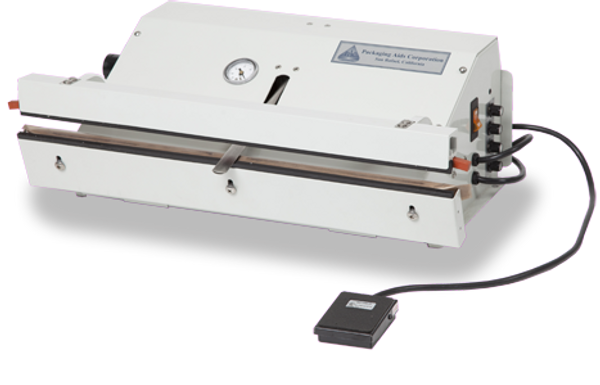

Vacuum heat sealer is a table top machine used for the removal of air from a bag before sealing.  The economical heat sealer is used for low volume applications requiring a quality machine. Offered with three seal lengths of 20", 25" or 30". A quiet venturi vacuum system and low pressure jaw safety system does not allow the high pressure to start if there is an obstruction.

The vacuum heat sealer features independent timers for vacuum, seal and cool cycles.  This allows the user to specify the combination of parameters resulting in excellent seals every time.

VACUUM HEAT SEALER FEATURES
• Independent timer for vacuum, seal and cool cycles (up to 12s vacuum, 3s seal, 3s cool)
• Seal length: 30"
• Seal width: 5/16"
• Venturi vacuum system for quiet operation and low maintenance (6.4 CFM)
• Single side heater bar with opposing pressure bar (bottom jaw heated)
• Thermal impulse time control system
• Spring close safety system with release if obstruction is detected
• Foot pedal cycle activation
• Air requirements (min): 100 psi
• Electrical requirements: 120V
• Dimensions: 23"-33"W x 8"H x 15"D
• Shipping dimensions:  33"W x 19"D x 14"H
• 2 year limited warranty
• Made in USA
• Ported exhaust  (for use in cleanrooms)
• Painted steel cabinet

VACUUM HEAT SEALER SEALING BENEFITS
• Single side impulse heater bar with opposing pressure bar (bottom jaw heated) for seal reliability
• Pneumatically operated sealing jaw for high pressure sealing
• Independent digital seal and cool timers ensures accurate settings
• Optional SureTemp temperature controller ensures seal quality

VACUUM HEAT SEALER VACUUM BENEFITS
• Type 60 Venturi Vacuum pump for fast and quiet air evacuation and low maintenance
• Single vacuum/gas flush nozzle (snorkel) to accommodate narrow or wide bags
• Digital timers for each stage of vacuum and gas flush (when applicable)

VACUUM HEAT SEALER VACUUM OPTIONS
• Gas Flush: for extending shelf life via modified atmosphere packaging
• Multi-Stage: perform multiple vacuum and gas cycles to achieve lower residual oxygen level
• Dual Nozzles: used for vacuum packaging two bags at one time
• Vacuum Level Sensor: provides consistent vacuum levels for every cycle
• Foot switch or timed vacuum control
• Dual venturi system particle resist (for liquid/wet products)
• Removable nozzles
• Temperature control - ensures sealing consistency
• SureSeal Digital Interface: includes 9 program job storage and multiple vacuum/gas cycles
• Gas flush
• Seal only
• Vacuum relief valve - prevents over vacuuming of the product

VACUUM HEAT SEALER SEALING OPTIONS
• SureTemp™ Temperature Controller: provides consistent seal quality (up to 350ºF) by accurately controlling temperature via a thermocouple
• Bi-active Seal: top and bottom heated seal bars for thick materials or reducing seal time
• Seal Jaw Selector Switch (bi-active version only): allows bottom seal jaw to be turned off
• Seal Only Switch: retracts nozzles for use as a bag sealer (no vacuum)

VACUUM HEAT SEALER OTHER OPTIONS
• Floor stand: for use on the floor instead of on a table
• Work shelf: supports the product during the packaging cycle (20" wide x 8" deep)
• 220V operation
• CE Compliant design
• Spare parts kit

Product Code: AV-PTV-30-PE  Vacuum Heat Sealers, Ported Exhaust for Use in Cleanrooms, Painted Steel Cabinet, Nozzle, 30" Seal Length

For more options, visit our main Heat Sealers section.

ORDER VACUUM HEAT SEALERS
To order a vacuum heat sealers, click tab above, call customer service at (303) 752-0076 or email sales@cleanroomworld.com

Shipping Instructions: The vacuum heat sealer ships on a motor freight carrier and the cost of shipping will be added to your order. The order ships collect or prepay and add to the invoice. If shipping collect, add your freight account number in the “Comments Box” when checking out. Customer is responsible for the freight charge.

In addition to vacuum heat sealers, we also offer a variety of other cleanroom packaging supplies, including cleanroom tape, cleanroom bags and tubing.
